Production

Specialists in sheet metal processing
Laser cuttingPunchingBendingDeburringWeldingFinishingAssemblingMaterials
LASER CUTTING

Max Sheet Size

3,000 x 1,500 mm

Material Thickness (normal)

Steel up to 12 mm

Stainless steel up to 10 mm

Aluminium up to 8 mm

Copper up to 3 mm

Machinery

Prima Power Platino , 6 kW fiber laser

Prima Power LPe6f + LSR6 – combined servo-electric punching, 3 kW fiber laser cutting (with O2 or N2) and marking + tapping station TU6 + upforming stations (4 pcs) + high-performance portal type loading and stacking robot for automatic material loading and part sorting (LSR).

TURRET PUNCHING

Max Sheet Size

3,000 x 1,500 mm

Material Thickness ( Normal)

Steel up to 8 mm

Stainless steel up to 4 mm

Aluminium up to 3 mm

Copper up to 4 mm

Machinery

Prima/Finn-Power F6-21 – CNC hydraulic turret punch press (30 T)

BENDING

Max Bending Line Length

3,000 mm

Max Press Power

200 tons

Material Thickness (normal)

Steel up to 8 mm

Stainless steel up to 6 mm

Aluminium up to 6 mm

Machinery – CNC hydraulic and servo-electric press brakes

Gasparini PSG 200 (200 T);    Prima Power eP-0520 (55 T);

Amada HFT 50-20 (50 T);    CoastOne 1600 (20 T)

ROBOTIC BENDING

Max Bending Line Length

2,500 mm

Max Press Power

80 tons

Machinery

2 CNC hydraulic and servo-electric press brakes with 2 Motoman robots. Max part weight to bend up to 8 kg.

WET DEBURRING AND GRINDING

Machine

Costa WD7-CVC1300,

Parameters

Three working organs – 2 cylinders and vertically rotating brushes

Width of working table – 1300mm, vacuum attachment of details

Max detail width – 1250mm

Max detail weight – 50kg

Processable material – thickness  1-150mm (steel, zinced material, stainless steel, aluminum)



Processing

Removing sharp edges and burrs from laser, punched and machined parts and surface finishing (brushing, grinding and polishing)

WELDING

We provide professional welding services in different techniques



  • MMA
  • MIG / MAG
  • TIG
  • SPOT

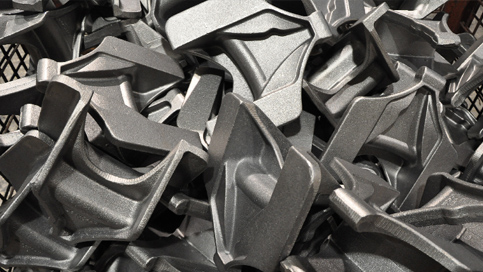

FINISHING

We are experienced in different types of surface treatments (in-house and outsourced)



  • Adding and altering finishing (incl. galvanizing, painting, powder coating, passivation etc)
  • Removing and reshaping finishing (incl. tumble finishing, grinding, polishing and other mechanical finishing processes)
ASSEMBLING

In addition to wide selection of high-quality production processes we offer different assembling services



  • Sub- and final assembly
  • Fasteners inserting press with automatic feeder
  • Joining, riveting



In order to produce all needed subparts for assemblies we have equipment for machining



  • Turning
  • Milling
  • Threading
  • Drilling
  • Sawing
Materials

Our usual line of processed materials include ferrous and non-ferrous metals.



  • All qualities of steel incl. hot and cold-rolled, galvanized, stainless, PVC-coated,  pre-painted, electro-galvanized
  • Aluminium
  • Copper
